Description

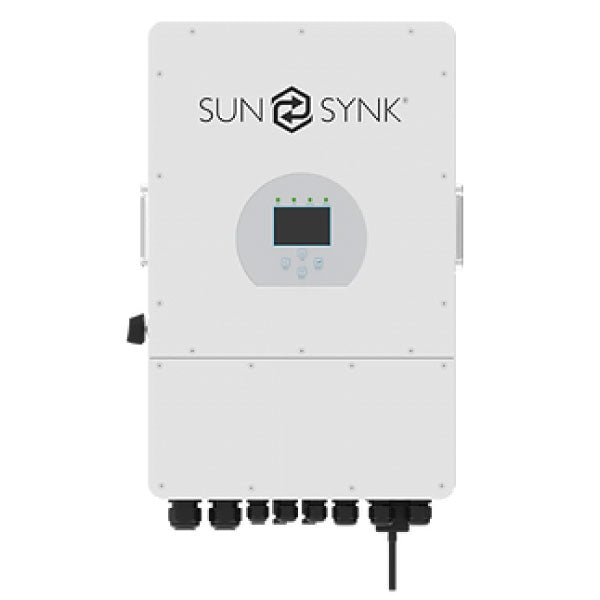

- SUNSYNK 8kW Hybrid Parity Inverter (1 Phase) – SUNSYNK-8K- SG01LP1
- Model SUNSYNK-8K- SG01LP1
- Wi-Fi Ready – works via Sunsynk App.
- Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App.
- The Synsynk Hybrid Parity Inverter is a Highly Efficient Power Management Tool.
- Manages Power Flow from multiple sources such as Solar, Main Electrical Grids & Generator, then effectively storing & releasing electric power as the utilities require.
- Easy & Simple to Understand Display.
- Wi-Fi & GSM monitoring supported.
- Equipped with Visual power flow screen.
- Built-In 2 strings of MPP trackers.
- Smart settable 3-stage MPPT charging – optimized battery performance.
- Auxiliary load function.
- Parallel/multi invert function grid-tied & off-grid.
- Grid Type: Split Phase, 2/3 Phase, Single Phase
- Protection Degree: IP65
- Noise Level: <30dB
- Maximum Charge & Discharge Current: 190A
- Battery Charging Strategy: Self-Adaptation to BMS
- Maximum DC Input Power: 10400W
- MPPT Range: 125-425V
- Start-up Voltage: 150V
- AC Output & UPS Power: 8000W
- Maximum AC Power: 8800W
- AC Output Rated Current: 33.4A/35A
- Maximum AC Output Current: 38.3A/40A
- Maximum Efficiency: 97.60%
- MPPT Efficiency: 96.50%
- Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
- Battery Voltage Range: 40-60V
- Communication with BMS: CAN/RS485
- Fan Cooling
- Operation Temperature: -25°C to 60°C
- Installation Type: Wall Mounted.
- Maximum Altitude: 4000m
- Weight: 32Kg
- Dimensions (L x W x H): 670 x 420 x 233 mm
- Does Not Include Power Cables & Communication Cables (Sold Separately)
- Refer To Brochure For Detailed Product Specifications.
- Product might vary from depicted images.
- Graphics are for illustrative purposes only.
- 5 Year Product Warranty (Extended to 10 Years if paired with Sunsynk Battery). T & C’s Apply
- Free Delivery Nationwide – South Africa
- Recommended Solar Panel Configuration:
- Min 3 Panels – Max 16 Panels (Panel Size: 180W to 560W Panels) (8 Panels per MPPT)
- Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
