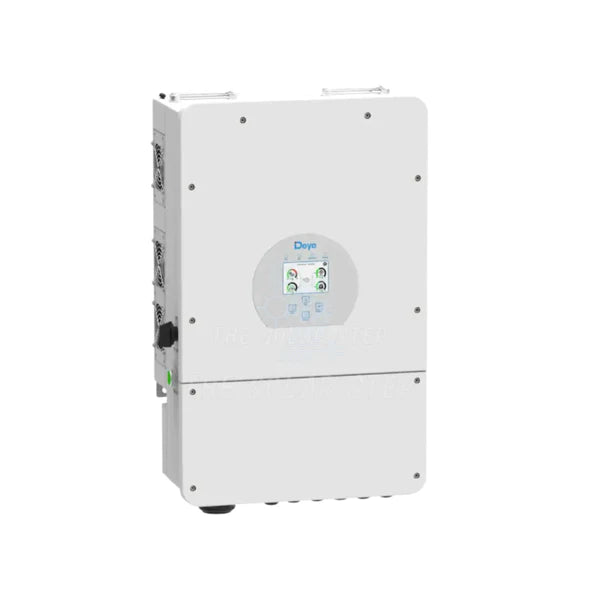

Deye 8KVA / 8KW Hybrid Solar Inverter / Dual MPPT + WIFI

Deye 8KVA / 8KW Hybrid Solar Inverter / Dual MPPT + WIFI

Description:

The 8KW Hybrid Solar Inverter is a high-efficiency power solution designed for residential and commercial applications. With a maximum efficiency of 97.6% and dual MPPT tracking, this inverter optimizes solar energy utilization, ensuring maximum power conversion. It seamlessly transitions between grid-tied and off-grid modes within 5ms, ensuring uninterrupted power supply.

Equipped with WiFi connectivity, this inverter supports real-time monitoring via a mobile app or web browser. It is compatible with lithium-ion and lead-acid batteries, offering a programmable charging and discharging schedule to enhance battery life and energy management. The IP65-rated enclosure ensures durability for outdoor and indoor installations.

Key Features:

• 8KW Rated Power – Ideal for grid-tied and off-grid solar systems.
• 10400W Maximum PV Input Power – Supports high-efficiency solar arrays.
• Dual MPPT Controllers – Enhances solar energy tracking and conversion.
• Wide MPPT Voltage Range (125V – 425V DC) – Supports flexible PV configurations.
• Seamless Grid & Off-Grid Switching (<5ms) – Ensures uninterrupted power supply.
• Zero Export Function – Prevents system feedback into the grid.
• Battery Compatibility – Works with Lithium-ion (LiFePO4) and Lead-Acid batteries.
• Fast Response Time (200ms in Zero Export Mode) – Ideal for smart energy management.
• 16-Unit Parallel Operation – Expandable for higher power needs.
• Supports Wind & Solar DC Input – Compatible with multiple renewable sources.
• Real-Time Monitoring – Web and mobile app support via WiFi connectivity.
• Smart Cooling & Low Noise (<30dB) – Ensures efficient operation.

Technical Specifications:

Battery Input

• Battery Type: Lithium-ion (LiFePO4) / Lead-Acid
• Voltage Range: 40V – 60V DC
• Maximum Charging / Discharging Current: 190A
• Charging Curve: 3-Stage / Equalization
• BMS Communication: RS485 & CAN

PV Input (Solar Charging)

• Maximum DC Input Power: 10400W
• PV Input Voltage Range: 100V – 500V (Optimal: 370V)
• MPPT Operating Voltage Range: 125V – 425V
• Start-Up Voltage: 150V
• Maximum PV Input Current: 18A + 18A
• Number of MPPT Trackers: 2
• Number of Strings per MPPT Tracker: 2+2

AC Output & Grid Interaction

• Rated AC Output / UPS Power: 8000W
• Maximum AC Output Power: 8800W
• Surge Power (Off-Grid Mode): 2x Rated Power (10 seconds)
• AC Output Rated Current: 33.4A / 35A
• Maximum AC Current: 38.3A / 40A
• Continuous AC Pass-Through: 50A
• Output Frequency & Voltage:
  • 50Hz / 60Hz
  • 120/240V Split Phase, 208V (2/3 Phase), 230V Single Phase
• Grid Compliance: THD <3% (Linear Load <1.5%)

Efficiency & Protection

• Maximum Efficiency: 97.6%
• Euro Efficiency: 97%
• MPPT Efficiency: 99.9%
• Integrated Protection Features:
  • PV Arc Fault Detection
  • Anti-Islanding Protection
  • PV Input Lightning Protection
  • Residual Current Monitoring
  • Overcurrent, Short Circuit, & Overvoltage Protection

Certifications & Compliance:

• Grid Regulations: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727
• Safety Standards: IEC62109-1, IEC62109-2
• Electromagnetic Compliance (EMC): EN61000-6-1, EN61000-6-3, FCC Class B

General Specifications:

• Operating Temperature: -25°C to 60°C (>45°C Derating)
• Cooling Method: Smart Fan Cooling
• Noise Level: <30dB
• Weight: 32kg
• Dimensions: 680mm x 420mm x 233mm
• Protection Rating: IP65 (Weatherproof)
• Installation Type: Wall-Mounted

What’s in the Box:

• 1 x 8KW Hybrid Solar Inverter
• 1 x WiFi Monitoring Dongle
• 1 x User Manual

Installation & Warranty:

• 5-Year Manufacturer Warranty
• Professional Installation Required – Must be installed by a qualified electrical wireman or master electrician.
• Valid Certificate of Compliance (COC) Required – Installation must comply with SANS 10142 standards.
• Warranty Claims – Must include installation photos, a valid COC, and proof of a qualified installer.
